Mobile Jaw and Impact Crushing and Screening Plant GNR - MC110 for sale. - Alice

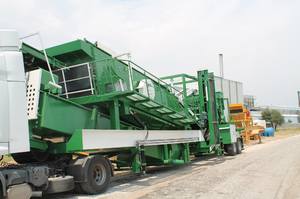

GNR - MC110 Mobile jaw crusher is designed to crush hard materials such as basalt, granite. The GNR - MC110 mobile crusher is the ideal solution for companies who prefer a mobile crusher.
1. VIBRATING FEEDER
1.1. Bunker
- Capacity... : 35 m³
Side Bunker sheets are supported from the outside with a "U" profiles to prevent erosion during truck feeding.
1.2. Vibrating Feeder
- Model... : GNR110
- Size... : 1100x4750 mm
- Drive... : 2x11 kW 1000 r/m vibro motor.
1.3. Jaw Crusher Maintenance Platform and Cabinet

2. JAW CRUSHER
- Model... : GNRK-110
- Size... : 1100x850 mm
- Drive... : 132 kW 1000 r/m - electric motor
- Jaws...… : % 16-18 Mn. 2.2 Cr Steel Casting
- Pitman... : Special production subject to normalization
- Flywheels... : GG22 gray cast iron. Shaft flywheel connection
- Body... : 50 mm DIN 17100 material, welded and bolted construction.
- Bearings... : Heavy duty, Spherical roller bearing, Spherical roller bearing
- Eccentric shaft ...: Cr.Ni.Mo. alloy steel.
- Flywheel speed ...: 228 rpm.
- Hydraulic jaw opening adjustment mechanism.
- Bolt system for easy maintenance of belt and flywheel housing.

3.PRIMARY IMPACT CRUSHER
- Model... : GNR-PDK 01
- Rotor Diameter ... : 1400 mm
- Rotor Width ...: 1500 mm
- Drive ...: 160 KW X 2 Electric motors – 1450 rpm
- Max. Feed Size ...: 1200 mm
- Pallets ...: GX120 Mn 12 (16-18% Manganese) steel casting
- Rotor Shaft ...: Ch 4140 alloy steel.
- Body sheet thickness ...: 25 mm, St37
- Body Backing ...: Manganese casting with a thickness of 30 mm.
- Bearings ...: Heavy duty type, Spherical roller bearing, Spherical roller bearing - Crusher For easy maintenance and repair, crusher hydraulic system to open and close the upper body hydraulically.

4. VIBRATING SCREEN
- Model ...: GNR2060
- Dimension ...: 2000x6000 mm
- Number of Deck ...: 3 Deck
- Drive ...: Drive from center, 30 KW – 1500 rpm
- The beds are liquid lubricated.
- SKF or FAG brand bearings.
- Adjustable eccentric weight for vibration control.
- Screen body is one piece of sheet.
- The screen will work on 8 springs in total.
- A maintenance platform will be installed on 3 sides of the screen.
- Heavy duty type
- Sieves 6 mm, ERD 9435 lined.

5. DOUBLE SCREW CLASSIFIER
800X8000 mm
DOUBLE
11 kW x 2 Pcs Motor
6.CONVEYOR BELTS
7. ELECTRIC PANEL AND REMOTE-CONTROL SYSTEM
Our factory General Makina is located in Izmir/Turkey.
